Date: -
Sealed-Bid

Henderson, Nevada, United States

Decommissioned, Re-Engineered & Refurbished Nickel/Chrome • POP • Copper Primary Line | Nickel/Chrome Line Refurbished in 2024 – Never Installed

Originally built by Jessup Engineering for Markland Industries, Inc., these three automated rack plating lines were acquired for a new operation that never entered production. The nickel/chrome line was fully decommissioned, re-engineered and refurbished, then placed in indoor storage awaiting installation. Increased electrical demand from nearby data centers prevented the site from securing the power required to operate, and the project is now being liquidated: a rare opportunity to acquire complete, installation-ready plating systems. Nearly $4 million in acquisition, de-installation, re-engineering and refurbishment of the facility. All equipment has been professionally cleaned and is ready for transportation.

T H E L I N E S

(2024 Refurbished) 2010 Jessup Automated Nickel/Chrome Rack Plating Line – PRIMARY LINE
Never used since refurbishment | Six-stage nickel | Trivalent and hexavalent chrome as separate stations

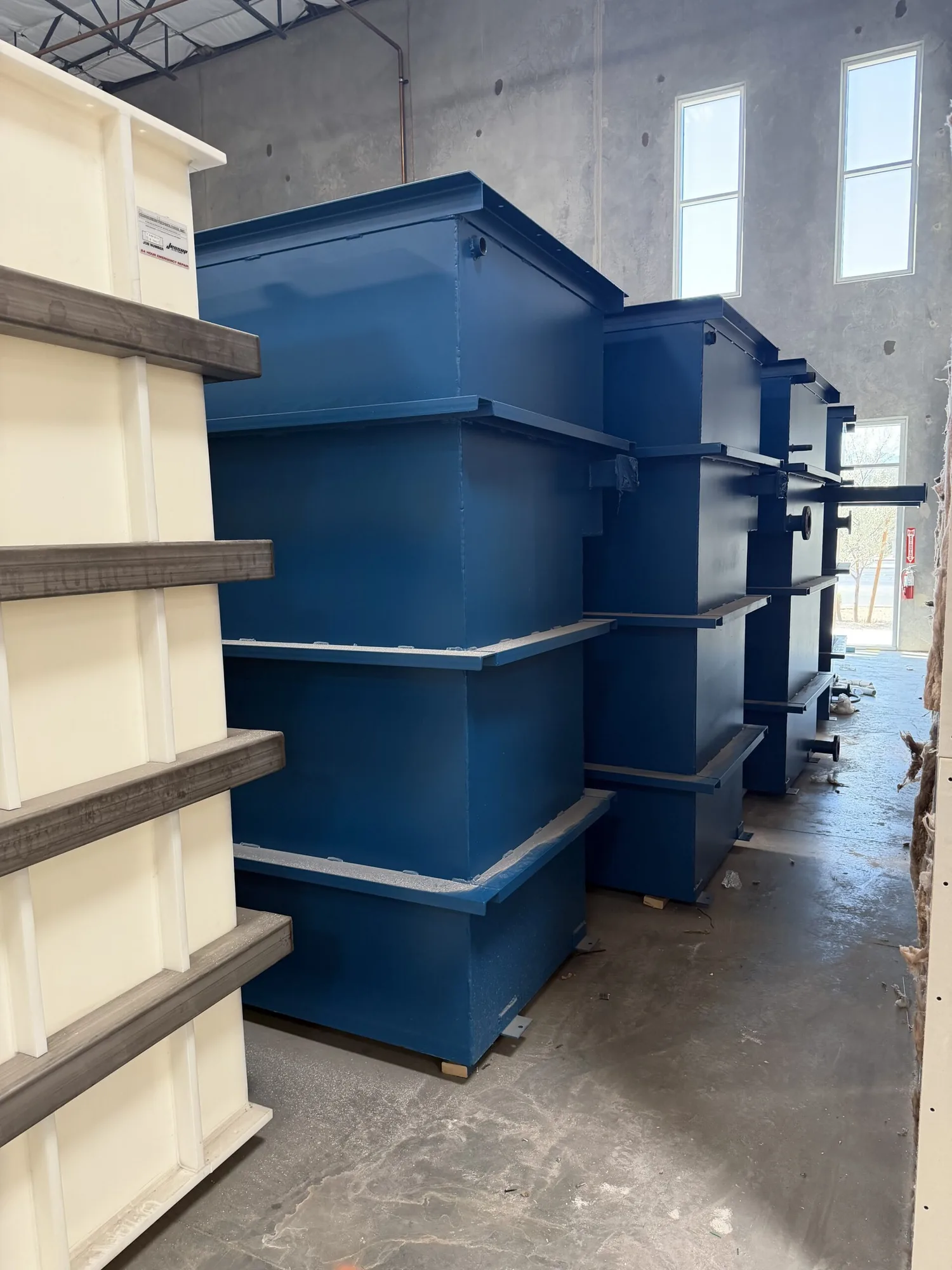

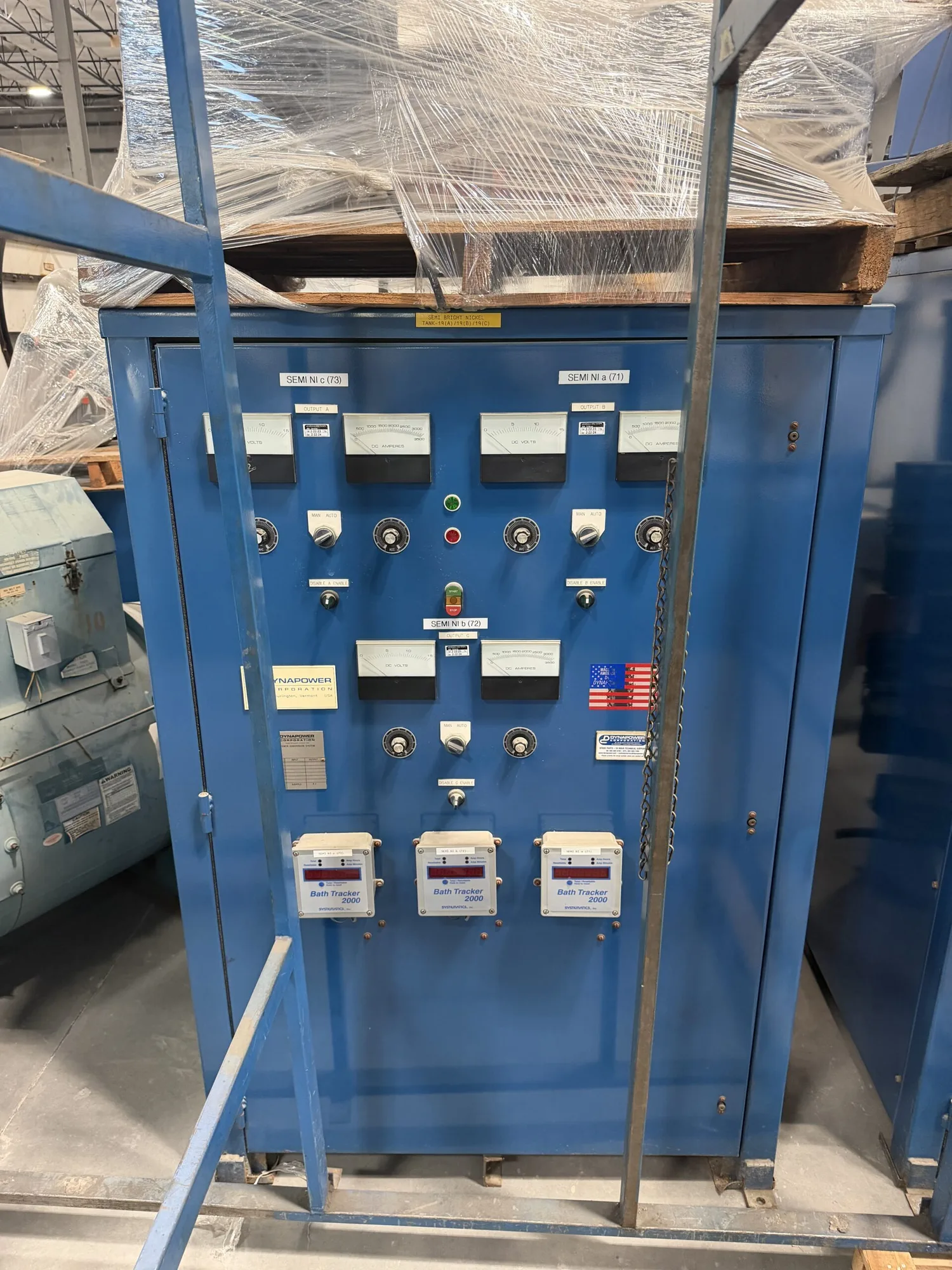

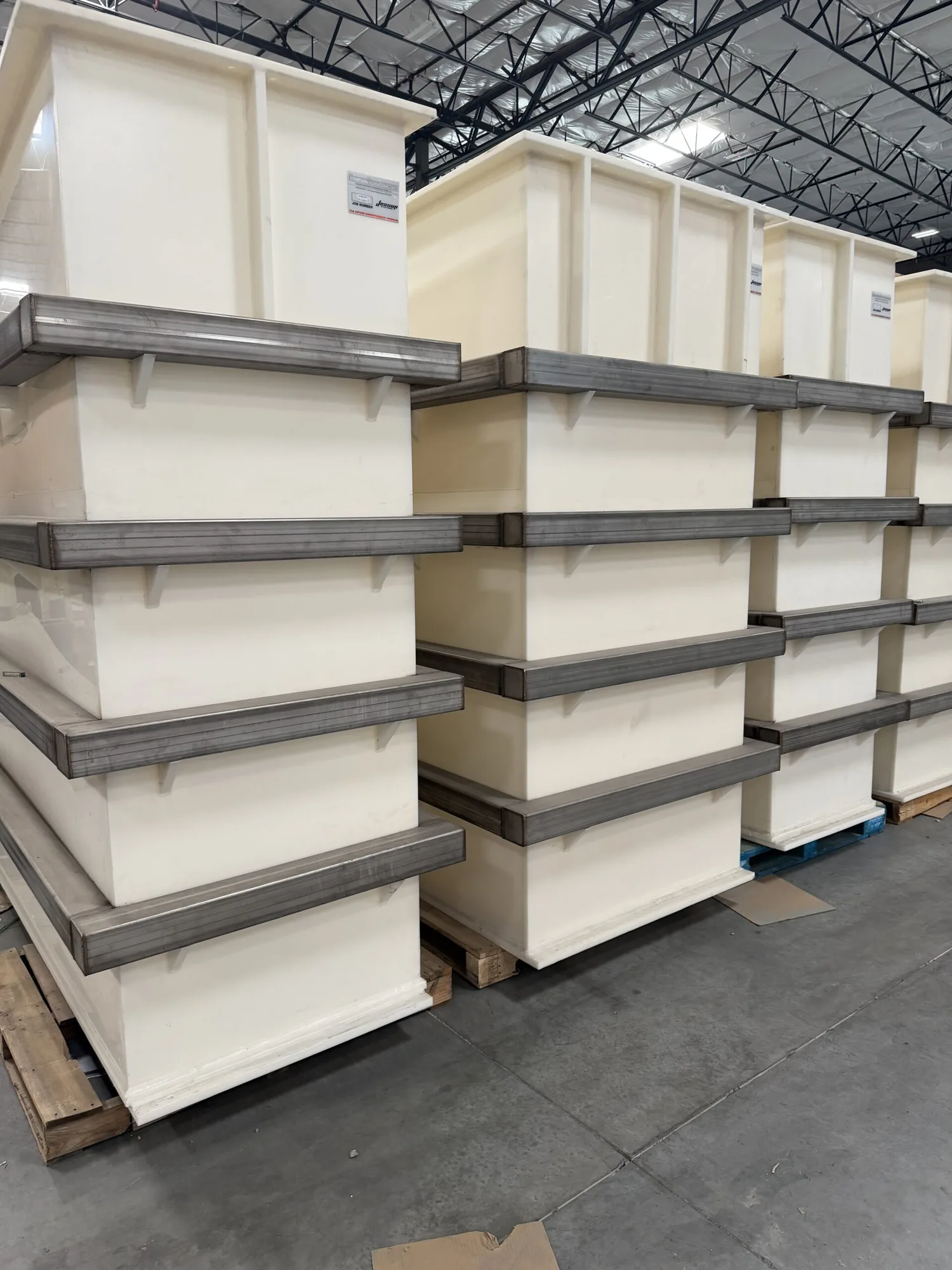

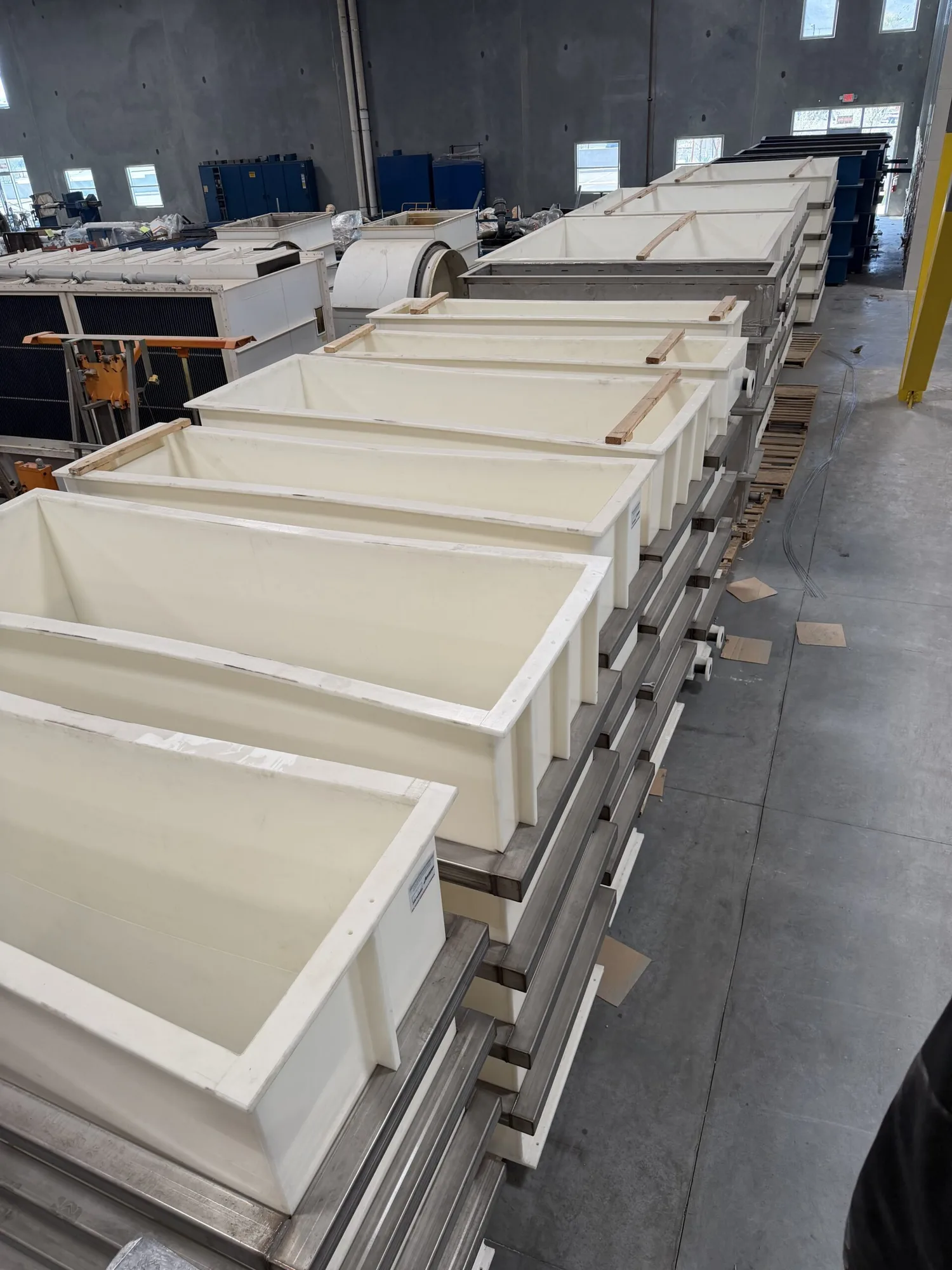

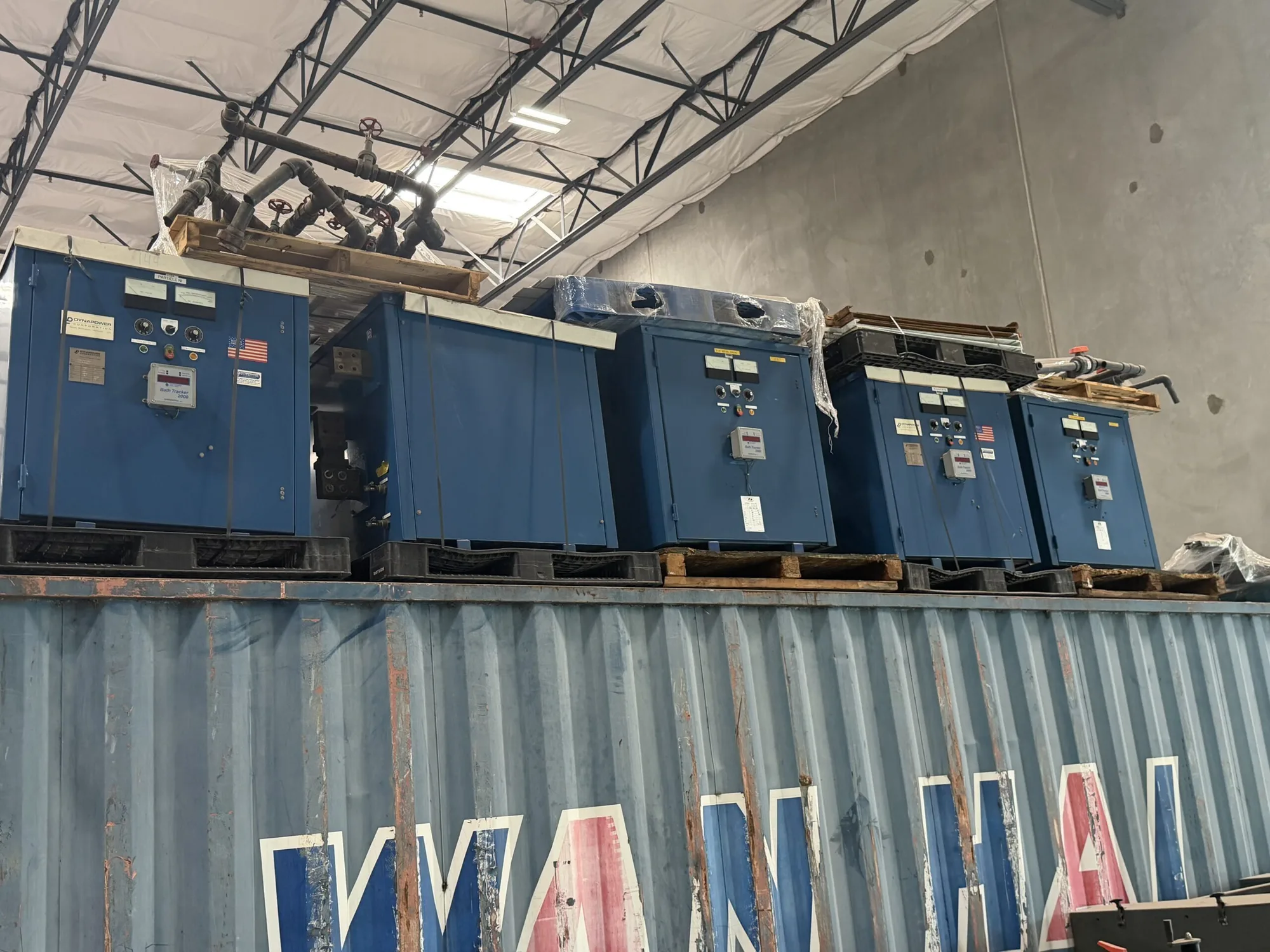

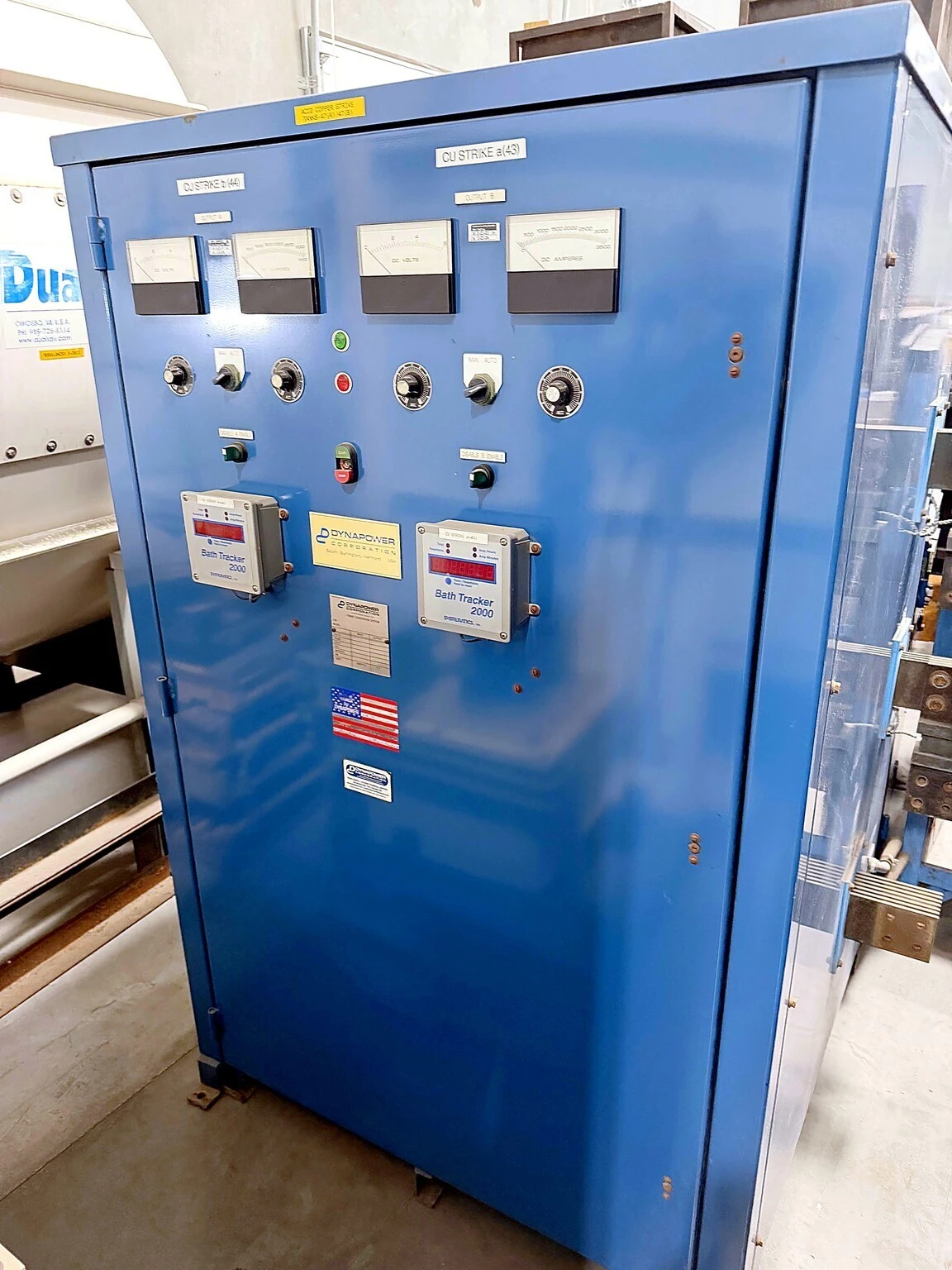

Tanks 118″ wide × 98″ deep, length varies | (42) new process tanks, approximately 78,500 gallons | (11) Dynapower water-cooled SCR rectifiers to 7,500 A

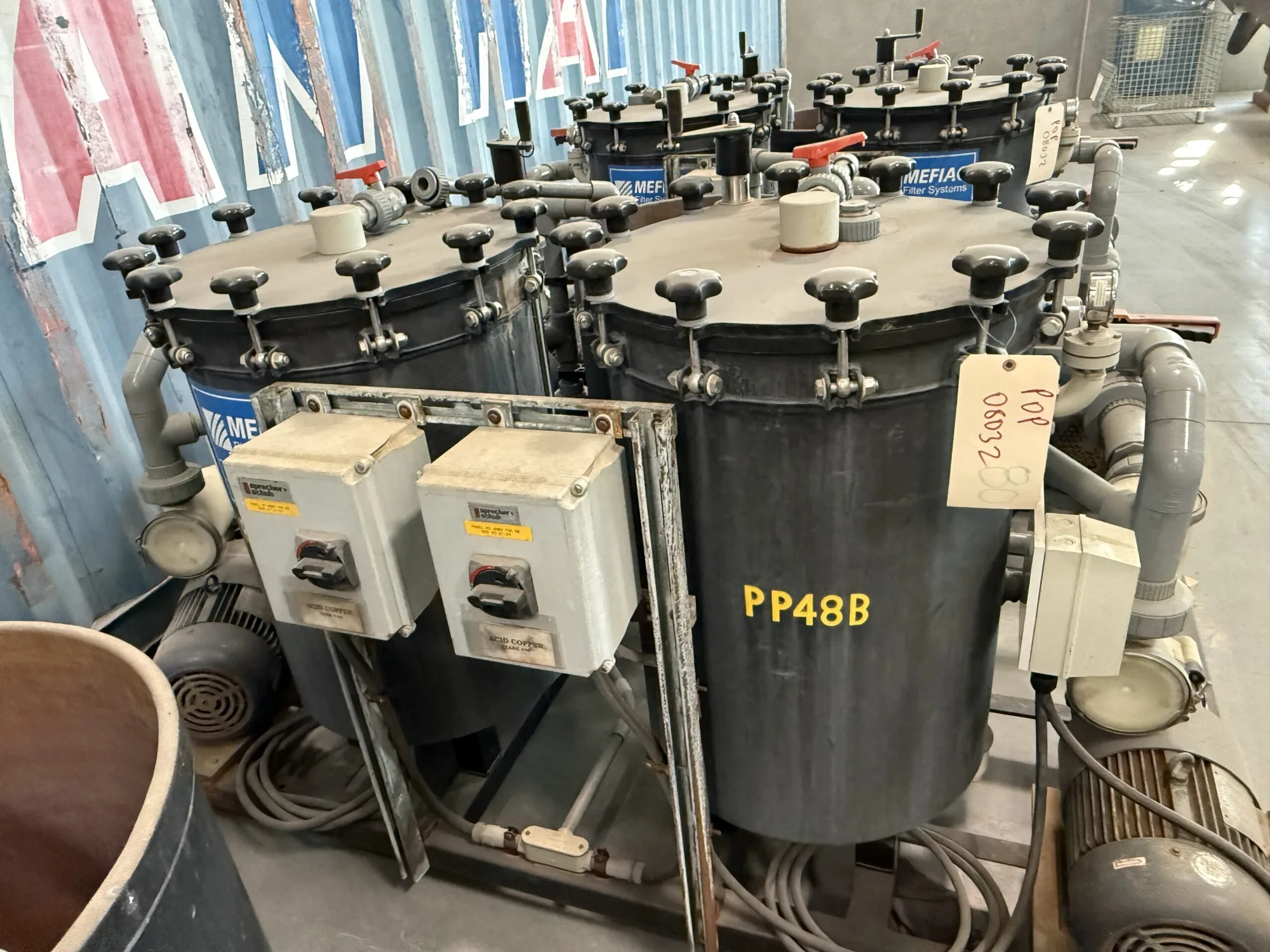

Process chain, re-engineered in 2024: separate steel and copper-substrate cleaning trains, an acid activator served by its own rectifier for electrolytic activation, electroless nickel with dedicated rinses, Woods nickel strike, then semi-bright nickel across two three-section tanks, high-sulfur, bright, satin and particle nickel, finishing in trivalent chrome and hexavalent chrome as separate stations, with a position provisioned for black chrome. Engineered filtration on 13 positions, approximately 114,700 GPH, with three turnovers per hour on each 6,050 gallon nickel tank. Rated 6 loads per hour. Rack size 24″ DOT × 118″ wide × 96″ deep. Four refurbished 2,000 lb programmable automated hoists, new computer-based HMI control system, new mezzanine, track and frame structure, new in-line dryer, new loading and unloading equipment, and all associated engineering files. Two-row return-flow layout with transfer shuttle and elevated catwalk access. Estimated installation area 118 × 115 feet, 23 feet high, per Koch engineering. Installs above floor on piers within curbed containment: no trench or below-grade work required. Utilities: 480V / 3-phase / 60 Hz, 120 VDC controls, natural gas 1 to 5 PSIG, compressed air 80 PSIG, process water 45 PSIG. Total connected load 2,307 A at 480V / 3-phase, approximately 1.9 MVA, including a 418 A ventilation panel and a 90 A hoist panel. New tank fabrication is held between indoor storage in Nevada and the fabricator’s plant in Missouri.

2010 Jessup Automated POP Rack Plating Line

Tanks 118″ wide × 66″ deep, length varies | (30) process tanks | (5) Dynapower water-cooled SCR rectifiers
Rated 11 to 12 loads per hour as originally installed. Rack size 12″ DOT × 106″ wide × 48″ deep. Three 2,000 lb automated hoists. Supplied with a new control panel as part of the 2024 project. Dismantled and stored as components.

2011 Jessup Automated Copper Rack Plating Line

Tanks 96″ wide × 66″ deep, length varies | (30) process tanks | (8) Dynapower water-cooled SCR rectifiers
Rated 10 to 12 loads per hour as originally installed. Rack size 12″ DOT × 83″ wide × 48″ deep. Three 1,000 lb programmable overhead center-column hoists. Dismantled and stored as components.

Each line is engineered to operate as a stand-alone system.

The following highlights key sale terms and identifies sale specific terms, which are also detailed on the bidding site. These, along with our General Terms & Conditions of Sale comprise the Complete Terms of Sale. To confirm your responsibilities as a buyer, please review the items below and view or download the General Terms & Conditions of Sale. NOTE: Terms are subject to modification; please verify terms prior to bidding. All references to Agent encompass ThreeSixty Asset Advisors, CA Global Partners, Fram Fram LLC, their bidding platforms, agents and representatives. SALE FORMAT: This is a SEALED BID sale, not a live or timed online auction. Bids are due by the Sealed Bid Deadline of 5:00 PM Pacific, Thursday, September 17, 2026. If Agent determines an overbid round is warranted, qualifying bidders will be invited to submit improved bids by 5:00 PM Pacific, Thursday, September 24, 2026. Agent and Seller reserve the right to accept or reject any and all bids, in whole or in part, to negotiate with one or more bidders, to withdraw assets at any time, and to accept a bid and conclude the sale at any time prior to the Sealed Bid Deadline. Submission of a bid does not obligate Seller to sell. No bid is binding on Seller until accepted in writing. BIDDING: Bids are invited on any line individually or on any combination of lines. Wastewater treatment components and process chemical inventory are offered as separate lots. All remaining support assets, including boilers, chillers, scrubbers, RO and water treatment, compressed air and the QA laboratory, are available to line bidders to add to their offers. Bids must be submitted on the form provided, must identify the lot or combination bid upon, and must be received by the deadline. Bids are confidential and no bid history is published. All sales are subject to Seller confirmation and to any reserve. REPRESENTATIONS: We do our best to provide information that will help Buyers to make purchase decisions; however item descriptions are offered as a guide. We do not guarantee descriptions, counts, materials, dimensions or conditions. Conditions are not stated for most items, but photographs attempt to show visual conditions of an item. While we may provide a condition note, the absence of a condition note or photo identifying a condition shall not imply that no condition issues exist. Equipment counts, ratings, capacities and dimensions are drawn from prior owner records, manufacturer documentation and engineering drawings, are estimated, and are not warranted. Bidders are urged to inspect. Further, neither Agent nor Seller makes any representation, guarantee or warranty as to the provenance, authenticity, completeness or operability of any items offered for sale, or the conveyance of any third party rights, including but not limited to copyrights, software licenses or process licensure. If an item is not stated in a lot description, assume it is not included. If you are uncertain about a lot, do not bid. All Items are sold ‘As-Is, Where-Is’, with all faults and without recourse. Buyer assumes all risks, all sales are final and under no circumstances will any claims be considered once purchases are removed from the sale site. CONDITION AND ASSEMBLY: The nickel/chrome line was decommissioned, re-engineered and refurbished in 2024 and has not been installed or operated since. The POP and copper lines were dismantled and relocated in 2023 and are stored as components. No line is standing or assembled. Ratings and production rates are as originally installed and are not a representation of performance following reinstallation. Reinstallation, engineering, permitting and commissioning are the sole responsibility of Buyer. MULTIPLE LOCATIONS: Assets are located in Nevada, Michigan and Missouri. Buyers are responsible for removal from every location at which assets awarded to them are stored. Inspection at each location is by appointment. SHIPPING: Shipping, rigging and transport are the responsibility of the Buyer and are NOT provided by Agent or Seller. SEE REMOVAL BELOW PAYMENTS: Payment on this sale is by wire transfer only; credit cards are not accepted. A non-refundable deposit of twenty-five percent (25%) of the accepted bid is due within two (2) business days of written notice of award, with the balance due within seven (7) calendar days of award (see Payments Section below for more details). No asset will be released until payment has cleared in full. In the event an invoice remains unsettled after the payment deadline, we reserve all rights to pursue damages, including the right to retain the deposit or pursue 25% as liquidated damages and/or resell the assets on the invoice. BUYER’S PREMIUM: None. No Buyer’s Premium will be added to accepted bids on this sale. SALES TAX: Applicable state and local sales or use tax will be added to the purchase price for the jurisdiction in which the assets are located, unless Buyer provides a valid resale or exemption certificate acceptable to Agent and to the applicable taxing authority, at Agent’s sole discretion. Buyers are responsible for determining and satisfying their own tax obligations. REMOVAL: Removal is by appointment and is coordinated between Buyer, Buyer’s rigger and Agent at each location. Assets are located in Nevada, Michigan and Missouri, and each location is scheduled separately. BUYERS ARE SOLELY RESPONSIBLE FOR ALL DISCONNECTION, DISMANTLING, RIGGING, LOADING, TRANSPORT AND REMOVAL, AT BUYER’S SOLE COST AND RISK, AND MUST SUPPLY ALL EQUIPMENT, RIGGING, MATERIALS AND MANPOWER NECESSARY TO REMOVE THEIR PURCHASES FROM WHERE THE ITEMS SIT; Agent and Seller do not provide rigging, loading, crating, packing, manpower or shipping services of any kind. Buyer’s rigger must provide a certificate of insurance naming ThreeSixty Asset Advisors and the property owner as additional insured, in form and amount acceptable to Agent, prior to entering any site. ALL ASSETS MUST BE REMOVED BY 5:00 PM LOCAL TIME, FRIDAY, OCTOBER 31, 2026. PERMITS, ENVIRONMENTAL AND HANDLING: Buyer is responsible for obtaining and maintaining all licenses, permits, manifests and approvals required to take possession of, handle, transport and store the assets, including any process chemicals, and for compliance with all applicable federal, state and local environmental, transportation and workplace safety requirements. Process chemical inventory is offered only to Buyers able to demonstrate that they are lawfully able to receive and transport it. Neither Agent nor Seller assumes any liability for Buyer’s handling, transport, storage or use of any asset. DEFAULT: Upon award of bid, Buyers are deemed responsible for a non-refundable 25% deposit. While Agent may elect not to collect the deposit in good faith, in the event of a Buyer default, Buyer’s acceptance of these Terms of Sale, evidenced by their participation in the sale, shall serve as Buyer’s authorization for Agent to pursue whatever means necessary to collect upon the 25% deposit as liquidated damages. In addition to the collection or retention of Buyer’s deposit, Agent may resell the assets and may report Buyer’s failure to perform on its obligations to the Bidding Platform’s system impacting Buyer’s future ability to participate in future sales. BIDDING DISCLAIMER: Agent reserves the right to add, delete, combine or divide lots, as well as adjust deadlines, the overbid schedule, or add or remove reserve prices. The sale relies on third party systems and technology that may be subject to connection interference and other systems failures. Agent reserves the right to take such actions it deems appropriate and fair to resolve bidding issues as a result of such technology issues or human error. OTHER: Agent is acting as agent only and is not responsible for the acts or omissions of its client. Agent is not the shipper, rigger or exporter of any purchased items being shipped from the sale site. These terms and conditions together with any amendments or modifications expressly made by the Agent constitute all the terms and conditions with respect to the sale of the assets offered. There are no representations, warranties, terms, conditions, undertakings, or collateral agreements except as hereinabove provided. Agent reserves the right to add, combine, delete or sell lots prior to the sale. See the General Terms & Conditions of Sale for complete buyer obligations.

Register and BidRegistration Required to Bid

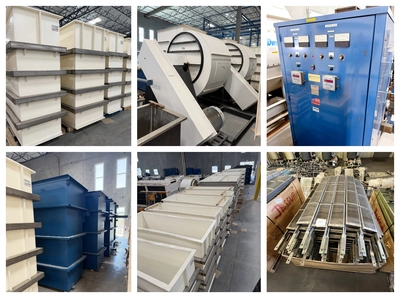

Dynaflex Products Complete Nickel/Chrome Plating Facility
