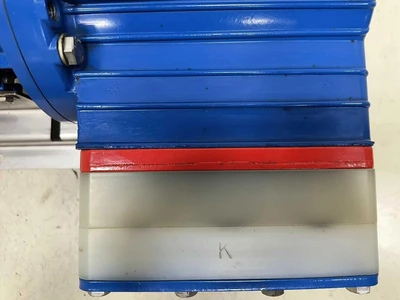

Wanner P200 Hydra Cell Metering Diaphragm Pump P200NMGTC060S
Have one to sell?
$1,950.00 USD
ConditionUsed
1 available
Wanner P200 Hydra Cell Metering Diaphragm Pump P200NMGTC060S Wanner P200 Hydra Cell Metering Diaphragm Pump P200NMGTC060S Click images to enlarge Description INV 7410 This is surplus from a large Fortune 500 manufacturing company. These are surplus from a project and never used or installed. Wanner Engineering Hydra Cell P200NMGTC060S Metering Diaphragm Pump Make: Wanner Engineering Model: Hydra Cell P200NMGTC060S S/N: 211100 Gearbox Reducer Ratios: 60:1 to 5:1 Turn Down Range: 0-81.0 gph Diaphragms per Liquid End: 3 Pressure Rating: PVDF- 350 psi (24 bar) Maximum Inlet Pressure: 250 psi (17 bar) Maximum Operating Temperature: 140 ÌŠF (60 ÌŠC) Maximum Solids Size: 200 microns Inlet Port: 1/2 inch NPT or BSPT Discharge Port: 3/8 inch NPT or BSPT Shaft Rotation: Bi-directional Oil Capacity: 1.0 US quarts (0.95 liters) Model P200 Hydra-Cell Metering Solutions pumps featuring new gearbox reducers with ratios from 60:1 to 5:1. They are designed for a wide range of processing applications and for use in manufacturing facilities. Combined with Variable Frequency Drive (VFD) electronic flow adjustment, Model P200 metering pumps with new gearboxes provide precise, accurate flow throughout the turndown range at up to 81.0 gph (255.4 lph) at pressure ratings to 350 psi (24 bar) for non-metallic pump heads and 1000 psi (69 bar) for metallic pump heads. The separate gearboxes also allow for versatility in changing applications and to prevent cross-contamination of actuating hydraulic oil. Model P200 pumps feature a multiple-diaphragm design that minimizes pulsations, producing smooth, linear flow without the need for expensive pulsation dampeners. A replenishment valve in every piston assemble ensures optimum actuating oil on every stroke for continuous accuracy. The seal-less design of Hydra-Cell means that there are no dynamic or mechanical seals, cups, or packing to leak, wear, or replace. Spring-loaded, horizontal disk check valves and the seal-less design enable the P200 to handle viscous fluids and abrasive particulates up to 200 microns in size. Hydra-Cell Metering Solutions pumps can also run dry indefinitely without damage to the pump and are available in a wide choice of pump head, valve, diaphragm, and o-ring materials. A variety of options and accessories (e.g. pressure valves, calibration cylinders, motors and controllers) are available with the model P200 to provide a complete chemical-feed pumping system. Cart 4 Thanks for Looking! I have a regular business selling used equipment. This item is also for sale outside of eBay therefore my listing will often end without notice. If you're interested please bid or make an offer promptly to avoid losing out. Buy with confidence. There is a 14 day return privilege if the item arrives not as described or non-functional unless otherwise stated in the description. Buyer must notify us within 14 days of items arrival. This is not a satisfaction guarantee, I will only honor a return if we miss-listed the items or it does not function properly. I try to take REALLY good photos so you know what you are bidding on. We want you to feel comfortable buying from us. If you have any questions please let us know. Pictures sell!Auctiva offers Free Image Hosting and Editing.300+ Listing Templates!Auctiva gets you noticed!THE simple solution for eBay sellers.
